   使用说明
Passive被动式DP++与active主动式DP转双通道Dual Link DVI-D转接线怎样区别AMD和nvidia英伟达官方推荐认证3D立体有源DP双链路医疗转换器
文件大类: 资料下载 文件小类: 使用说明
文件语言: 简体中文 文件格式: PPS
文件大小: 350k 上传时间: 6/12/2012
文件简介:

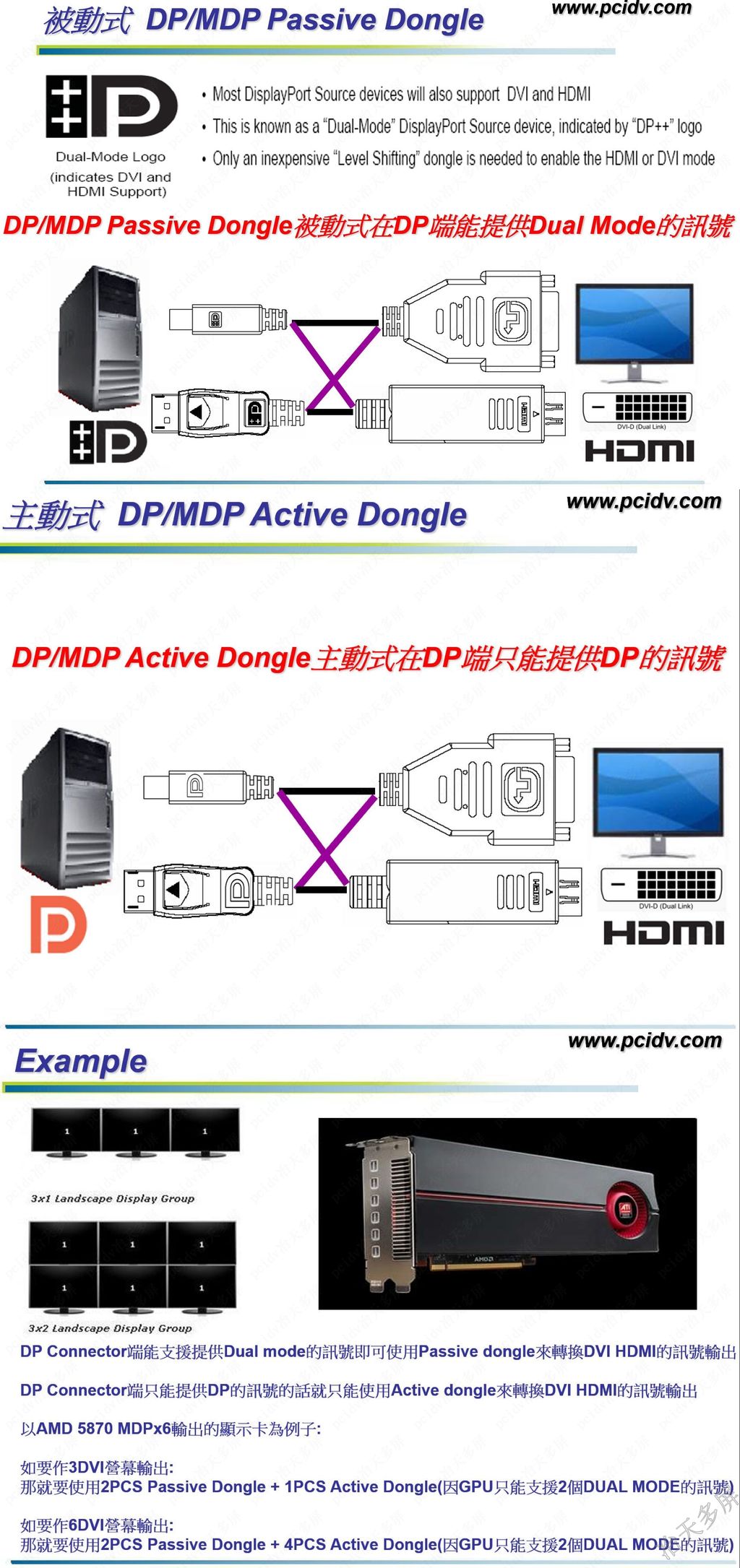

被动式DP线DP++适配器主动式DP转接线区别

DP转双链路DVI双通道支持全高清120Hz刷新或2K@60Hz

如何鉴别DP++被动式Passive与主动式acitve DP转DVI/VGA/HDMI线怎样区别及多屏显示应用

AMD宽域Eyefinity官方推荐转接器 : http://support.amd.com/en-us/recommended/eyefinity-adapters#k=

Partner
Product P/N
Revision
Firmware
Input
Output
Supported Max Resolution*
Accell
B086B-001B
A1
N/A
DisplayPort™
HDMI
1920x1200
Accell
B086B-002B
A1
N/A
Mini DisplayPort™
HDMI
1920x1200
Accell
B087B-001B
A1
N/A
DisplayPort™
DVI-D Single Link Passive
1920x1200
Accell
B087B-001B-3
A1
N/A
DisplayPort™
DVI-D Single Link Passive
1920x1200
Accell
B087B-002B
A1
2.0
DisplayPort™
DVI-D Dual Link Active
2560x1600
Accell
B087B-002B-3
A1
2.0
DisplayPort™
DVI-D Dual Link Active
2560x1600
Accell
B087B-003J
A2
2.0
Mini DisplayPort™
DVI-D Dual Link Active
2560x1600
Accell
B087B-004B
A1
N/A
Mini DisplayPort™
DVI-D Single Link Passive
1920x1200

Adapts: DisplayPort™ To: DVI-D Dual Link (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS10008-131
2.0
2560x1600
Accell
B087B-002B
2.0
2560x1600
Accell
B087B-002B-3
2.0
2560x1600
Adapts: DisplayPort™ To: DVI-D Single Link (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS10015-131
0.95
1920x1200
Wieson
G9857C219-013-H
0.95
1920x1200
Accell
B087B-005B
0.95
1920x1200
Bizlink
KS 10039-A31
0.95
1920x1200
Startech
DP2DVIS
0.95
1920x1200
Astron
T2M3F01071-H
0.95
1920x1200
Adapts: DisplayPort™ To: DVI-D Single Link (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS10009-131
N/A
1920x1200
Hosiden
TYX1602-010407
N/A
1920x1200
Accell
B087B-001B
N/A
1920x1200
Wieson
G9857C219-004
N/A
1920x1200
Wieson
G9857C219-012
N/A
1920x1200
Accell
B087B-001B-3
N/A
1920x1200
Adapts: DisplayPort™ To: HDMI (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS10047
0x08
4096x2160
Accell
B086B-003B
0x08
4096x2160
Accell
B086B-003B-2
0x08
4096x2160
Wieson
G9857C219-026-H
0x08
4096x2160
Adapts: DisplayPort™ To: HDMI (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Accell
B086B-001B
N/A
1920x1200



Adapts: DisplayPort™ To: HDMI (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Astron
97-012602-H
N/A
1920x1200
Bizlink
KS10006-131
N/A
1920x1200
Bizlink
KS10046-A31
N/A
4096x2160
Wieson
G8247C219-002H
N/A
1920x1200
Adapts: DisplayPort™ To: VGA (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS10031-131
1.4
1920x1200
Accell
B101B-003B
1.4
1920x1200
Accell
B101B-003B-2
1.4
1920x1200
Adapts: Mini DisplayPort™ To: DVI-D Dual Link (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS30008-131
2.0
2560x1600
Accell
B087B-003J
2.0
2560x1600
Adapts: Mini DisplayPort™ To: DVI-D Single Link (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS30015-131
0.95
1920x1200
Wieson
G9858C219-006-H
0.95
1920x1200
Accell
B087B-006B
0.95
1920x1200
Startech
MDP2DVIS
0.95
1920x1200
Astron
3411020-090-H
0.95
1920x1200
Adapts: Mini DisplayPort™ To: DVI-D Single Link (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Accell
B087B-004B
N/A
1920x1200
Compupack
1030A088-001
N/A
1920x1200
Compupack
1030A088-001-H
N/A
1920x1200
Wieson
G9858C219-001-H
N/A
1920x1200
Astron
3411020-057-H
N/A
1920x1200
Bizlink
KS30009-A31
N/A
1920x1200



Adapts: Mini DisplayPort™ To: DVI-D Single Link (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Hosiden
HVE0532-021
N/A
1920x1200
Adapts: Mini DisplayPort™ To: DisplayPort™
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Astron
3411020-056-H
N/A
Bizlink
KS30011-131
N/A
JAE
DP2DP1ST202002
N/A
Wieson
G9858C219-005-H
N/A
Accell
B112B-001B
N/A
Compupack
1030A088-003-H
N/A
Compupack
1030A088-003
N/A
Bizlink
KS30011-A31
N/A
Adapts: Mini DisplayPort™ To: HDMI (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS30047
0x08
4096x2160
Accell
B086B-008B
0x08
4096x2160
Accell
B086B-008B-2
x08
4096x2160
Wieson
G9858C219-016-H
0x08
4096x2160
Adapts: Mini DisplayPort™ To: HDMI (Passive Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Astron
3411020-058-H
N/A
1920x1200
Compupack
1030A088-002-H
N/A
1920x1200
Wieson
G9858C219-003-H
N/A
1920x1200
Bizlink
KS30006-131
N/A
1920x1200
Accell
B086B-002B
N/A
1920x1200
Bizlink
KS30046-A31
N/A
4096x2160
Adapts: Mini DisplayPort™ To: VGA (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Bizlink
KS30031-A31
1.4
1920x1200



Adapts: Mini DisplayPort™ To: VGA (Active Adapter)
Manufacturer
Part Number
Firmware
Max Resolution
Purchase
Wieson
G9858C219-004
1.4
1600x1200
Accell
B101B-002B
1.4
1920x1200
Startech
MDP2VGA
1.4
1920x1200

What features of AMD Eyefinity technology are supported in the different versions of Microsoft® Windows®?


Feature
Windows XP®
Windows Vista®
Windows 7 & 10
Eyefinity 1.0
Support for >2 displays in Extended or Clone Mode
Y
Y
Y
SLS up to 6 displays
X
Y
Y
Bezel Compensation
X
Y
Y
AMD CrossFire technology
X
Y
Y
Multiple Display Groups
X
Y
Y
Per-Display Color Adjust
X
Y
Y
AMD HydraVision
X
Y
Y
Eyefinity 2.0
5x1, and other new display group configurations
X
X
Y
Custom Resolutions
X
X
Y
Task Bar Positioning
X
X
Y
16k x 16k Resolutions
X
X
Y
AMD HD3D technology
X
X
Y
Bezel Compensation for Non-Identical Monitors
X
X

Updated 09/29/2021 01:06 PM
WHICH DISPLAY ADAPTERS SHOULD I USE WITH GEFORCE AND QUADRO PRODUCTS?

The following table lists recommended display adapters that have been tested by NVIDIA for compatibility with GeForce and Quadro products. These adapters are sold and warranted directly by partners of NVIDIA.

KSC001B-A07
Type
Manufacturer
NVIDIA Part Number
Manufacturer Part Number
Notes
Display Port 1.1 to Single Link DVI—PASSIVE
BizLink
030-0381-000
KS10037-007
Display Port 1.2 to Single Link DVI—PASSIVE
Amphenol
030-0850-000
HDPDI-0026
Simula
030-0851-000
DJ802N-4000-10F
Display Port 1.2 to Dual Link DVI— ACTIVE
BizLink
030-0641-000
KS10064-A07
Firmware 2.33
Display Port 1.1 to HDMI 1.3—PASSIVE
Bizlink
030-0333-000
KS10006-B07
Display Port 1.1 to VGA—ACTIVE
Bizlink
030-0700-000
KS10069-120
Firmware V173
Display Port 1.3 Male to mini Display Port 1.3 Female—PASSIVE
Freeport
030-0337-000
18-94202182
Astron
030-0336-000
3411020-092-H
Mini Display Port 1.2 to HDMI 1.4 Type II—PASSIVE
Bizlink
030-0603-000
KS30046-007
Mini Display Port 1.2 Male to Display Port 1.2 Male—PASSIVE
Simula
030-0351-000
CB083A-8000-10H X3
6 Foot
Latching mini Display Port 1.2 Male to Display Port 1.2 Female—PASSIVE
BizLink
030-0415-000
KS30011-B07
Recommended for all Quadro & NVS products that require four or less latching mDP connectors
Simula
030-0416-000
CB802E-4000-10H
Latching mini Display Port 1.2 Male (9.6 mm width) to Display Port 1.2 Female—PASSIVE
BizLink
030-0659-000
KS30011-D07
Recommended for all Quadro & NVS products with a latching mDP connector
Amphenol
030-0705-000
HDPDM-0004
Latching mini Display Port 1.1 (9.6 mm width) to Single Link DVI Female—PASSIVE
Bizlink
030-0438-000
KS30037-C07
Recommended for all Quadro & NVS products that require four or less latching mDP connectors
Latching mini Display Port 1.2 (9.6 mm) to HDMI 2.0—ACTIVE
Amphenol
030-0820-000
HDPMH-0006
Firmware 7.55. Supports Deep Color with R390 or newer drivers. Does not support HDR
Simula
030-0808-000
DJ801K-1000-10F
Firmware 0x07 0x55. Supports Deep Color with R390 or newer drivers. Does not support HDR
Latching mini Display Port 1.2 (9.6 mm width) to VGA—ACTIVE
Amphenol
030-0843-000
HDPDM-0021
Simula
030-0844-000
CB803E-4000-10F
Mini Display Port 1.1 Male to Single Link DVI Female—PASSIVE
Simula
030-0349-000
DJ802D-1000-10H
Mini Display Port 1.1 to VGA—ACTIVE
Bizlink
030-0857-000
KS30078-A07
Firmware v 226
HDMI 1.4a w/USB 2.0 to VGA - ACTIVE
Amphenol
030-0822-000
HHMAV-0013
LT8511 Firmware VA0
HDMI 1.4 Male 19 pos Type A to HDMI 1.4 Male 19 pos Type C—PASSIVE
Astron
030-0242-000
3411019-003-R
RoHS Compliant/10 Foot. Recommended only for use on GeForce™ GTX 480 and GTX470
Astron
030-0292-000
3411019-002-R
RoHS Compliant/6 Foot
DVI-D Male to HDMI 1.4 Type A 19 pos Female Adapter—ACTIVE
Wieson
320-0402-000
G8246CE04-006
RoHS Compliant/Recommended only for use on:1) GT21X Products and beyond 2) Varying GT200 Products
DVI-I to VGA Adapter - PASSIVE
Astron
320-0701-000
583M05F-0N005T-H
USB Type C to Display Port 1.4 - PASSIVE
Bizlink
030-1037-000
KSC0044-A07
Firmware C100 0120. Certified to HBR2
Simula
030-1036-000
DJ8A5T-4000-10H
Firmware 99.64.1.1.
Certified to HBR2
Simula  030-1036-000
DJ8A5T-4000-10H(REV.B)
• Firmware 99.67.1.1
• Certified to HBR2
USB Type C to HDMI 2.0+ USB Type A 3.1
BIZLINK  030-1098-000
117H0-050250-R1
Firmware v0B3A or newer. Nvidia
BizLink
030-1098-000
• Firmware v0B3F or newer
• NVIDIA driver 417.22 or newer&, amp;, nbsp;

TYPE
Manufacturer
NVIDIA Part Number
Manufacturer Part Number
VR HMD Tested
Notes
Display Port 1.2 to HDMI 1.4 Type II—PASSIVE
Bizlink
030-0602-000
KS10046-A07
HTC Vive Oculus Rift
Simula
030-0981-000
DJ801H-1000-000
HTC Vive Oculus Rift
Display Port 1.2 to HDMI 2.0—ACTIVE
Amphenol
030-0803-000
HDPDH-0015
HTC Vive
Firmware 7.55. Supports Deep Color with R390 or newer drivers. Does not support HDR
Bizlink
030-0795-000
KS10070-A07
HTC Vive
Firmware 7.55. Supports Deep Color with R390 or newer drivers. Does not support HDR
DisplayPort 1.1 to VGA - Active
Bizlink
030-1119-000
KS10078-A07

Alternative solution MP’d with ITE6516 solution to replace EOL’d solution ITE 6513
VENDOR CONTACT INFORMATION
Below table lists the contacts for the various vendors.

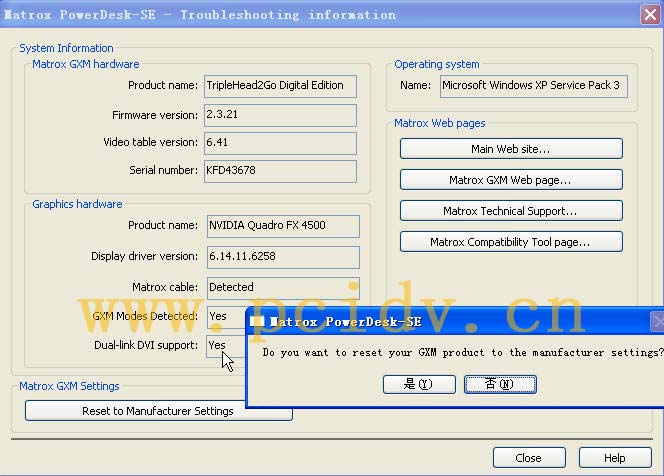

Dual link DVI支持检测

双通道DVI双联路线是否支持检测判断

VESA认证符合DP规范产品页面
DP转双通道DVI-D各品牌版本区别差异
Brand
Product P/N
Rev
Firmware
厂商
PN
Clock
Chipset
PCB
Refresh
Resolution
AMD

   2.0 Bizlink  KS10008-31   330M st图   图  60  2560x1600
AMD       2.0   KS30008-131
Accell  B087B-003J
Barco  K9305105    2.19  BZL  KS10064-C75    新思   图   2800x2100
Dell  NR078AA
HP  572003-001
Nvidia       2.33   KS10064-A07   330M
Bizlink mdp to Dual link      Ks30014   330M
  DP TO DUAL LINK        KS10014
   DP TO DUAL LINK       KS10064   330M

Vendor
Contact
Email
Phone
Jim Feng
+1-415-298-9333
Anita Chang
+886-2-2299-0885 Ext 221
Eric Wu
+1-510 770-8226
Christopher Chen
+1-415-412-7286
Alice Yu
+1-408-659-9122
Carol Chen
+886-2-2647-1896 ext 6300


图片预览:
下载地址: 点击下载>>
扫一扫,微信公众号
多屏显卡大屏幕拼接微信订阅号
多屏显卡大屏幕拼接
冶天多屏显卡微信服务号
pcidv-com服务号
冶天多屏显卡微信服务号
微信小程序JD商城

 一机多屏显示不同内容
 多屏视频:3D拼接画面

2X2拼接 横向水平跨越
竖屏拼接 纵向垂直拼接
双屏显示 2屏拼接+旋转
三屏显示 3屏拼接旋转
四屏显示 4屏旋转拼接
五屏显示 视频画面回传
六屏显示 6屏视频跨屏
跨屏漫游 8屏拼接4X2
液晶LCD拼接9屏3X3
12屏拼接4x3电视墙
16屏显示4x4液晶墙
超高分辨率液晶异形拼接
多屏幕边缘融合曲线校正
超窄边液晶DID无缝拼接
股票多屏大智慧/同花顺
多路采集大屏数字上墙
一机多屏图片实拍效果图
多屏效果确认产品推荐表

 多媒体显示屏信息发布
 数字标牌分屏告示系统

hair salon
美发店/SPA美容院
clothing store
KTV夜店/健身会所
fashion
服饰店/珠宝行/酒吧
shopping mall
卖场超市/百货商场
metro
地铁站/机场航站楼
fast food
快餐店/星巴克咖啡
convenience
便利店/停车场/药房
cinema/pcidv.com
电影院/会展中心
学校医院/银行证券
旅行社/房产中介
气象调度/指挥中心
快捷酒店|生产线
予人玫瑰,手有余香

 ·网上购物须谨慎

面朝大海,春暖花开

  友情链接
投影时代网  HIBRITEK official  福步外贸  亚马逊卓越  displaylink官网  依马狮视听网  PC vision  hardwareheaven硬件  滄者極限  PCT TECH  亚洲国际展馆  Inforcomm巡展  中关村服务器配件网  中国IC交易网  集邦全球电子交易市集  QNX官网操作系统  华强电子IC网  原厂原包IC交易  AMD/ATI开发者论坛  IC-datasheet搜索
关于我们 支付说明  保修条例  供求信息  招商合作  人才储备  哪里购买 资料下载 驱动程式  技术支持  填写表格  使用说明  产品列表  相关软件
技术博客 教育博客           G Merchant google商家 速卖通 苏宁易购 贝宝内贸
深圳国税 深圳地税           G Adsense 谷歌推广 百度推广 百度统计 百度联盟

工商信息 免责声明 网站导航 广告联系 在线办公
Copyright © 2009 www.pcidv.com All Rights Reserved 深圳市卓星彩奕电子有限公司 版权所有
ICP备:粤ICP备05147688号       页面执行时间:35.156 毫秒

深圳网络警
察报警平台
工商网亮照
众信电子签
经营性网站
备案信息
12377
举报中心
中国文明网
传播文明
